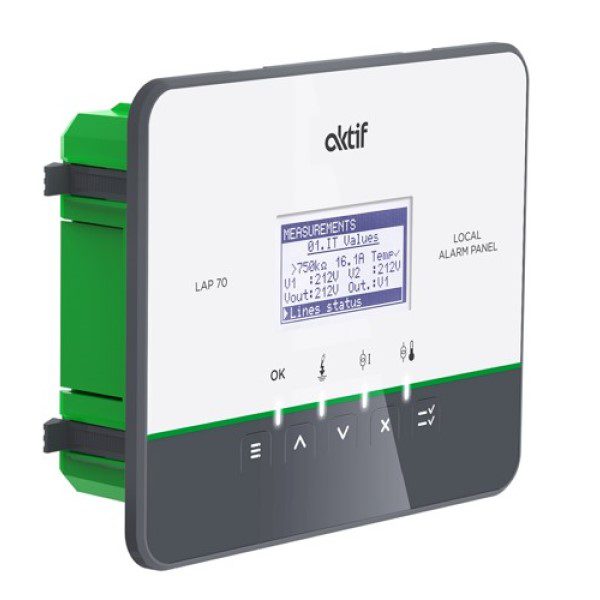

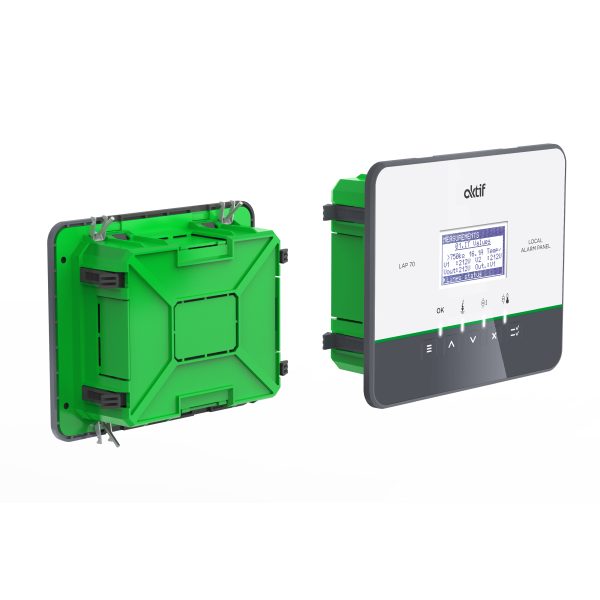

LAP 70 Local Alarm Panel indicates alarms like insulation fault, overcurrent, transformer over temperature visually and audibly that are detected by the IMD 30 insulation monitoring device and stores each event with their timestamp.
Advantages
- Remotely monitor all alarm information detected by the Isolated power system
- Remote insulation test and fault contact outputs
Applications Areas
Used in nurse desks of Group 2 rooms in Medical Facilities (Hospitals, Health Centers, Dental Clinics, Aesthetic Centers, Animal Hospitals):
Group 2 rooms:
- Anesthetic rooms
- Operating rooms
- Operation preparation rooms
- Recovery room
- Cardiac catheterization rooms
- Intensive care units
- Angiographic examination rooms
Standards
- IEC 60364-7-710
|
Technical Specification |
|
| Supply Voltage | 24 Vac/dc |
| Frequency | 50/60 Hz |
| Power Consumption | 8 W |
| Number of Event Logs | 150 |
| Fault Relay Types | 2 x Relay output (NO, NC) |
| Alarms | Insulation fault Overload Overtemperature |
| Internal Communication Protocol |
Modbus RTU (Used to only communicate with IT devices) |
