Designed for demanding outdoor conditions, the cable distribution and protective cabinets are made of AlMg3 marine aluminium and galvanised steel sheeting.

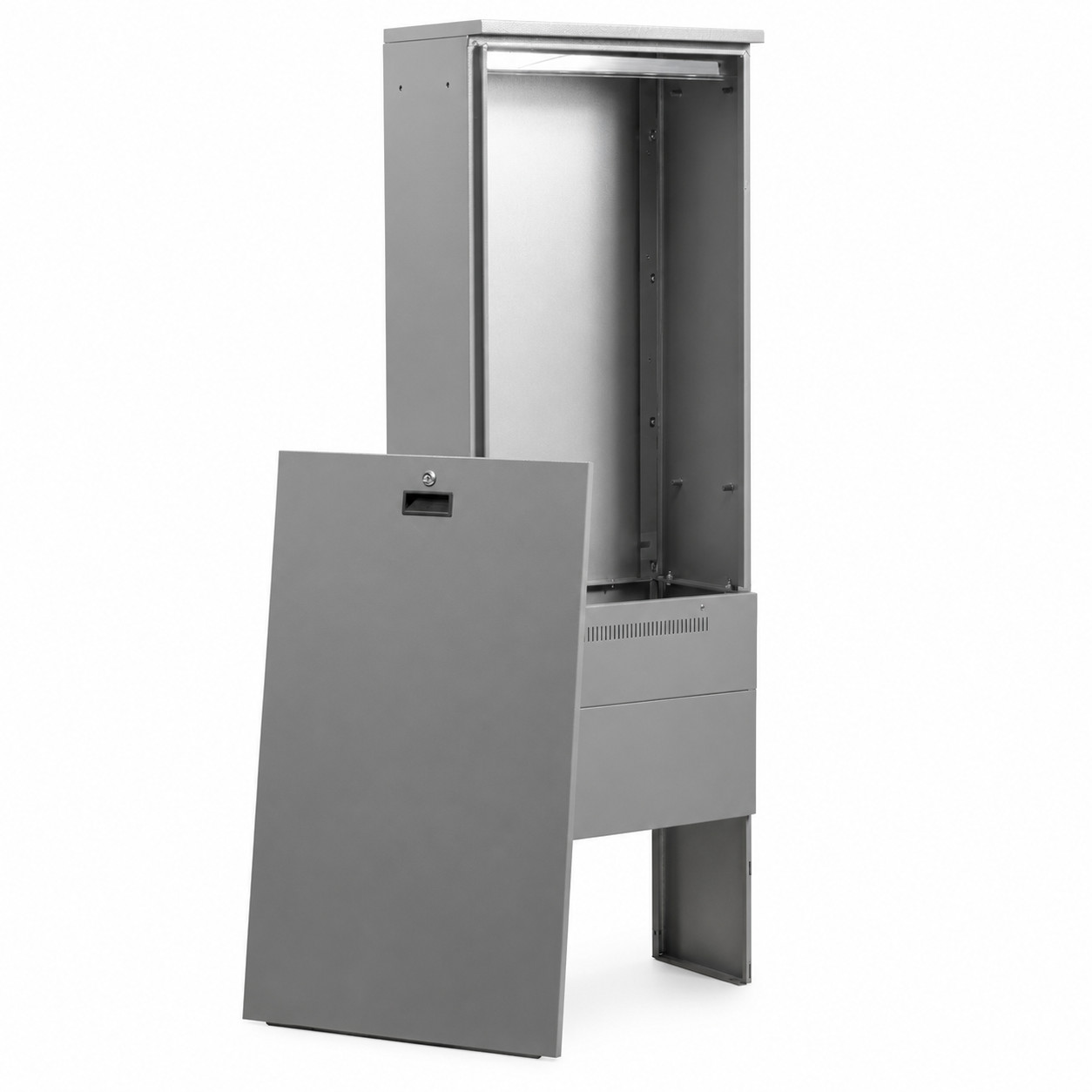

SLV-C series is developed to provide effective protection to low-voltage and instrument centres. The robust structure consists of two main parts, the protective cabinet and the base, which are easily assembled and installed with screws, nuts, and rivets.

The protective cabinet is available in various sizes, and its fastening mechanism has been designed to allow for easy installation of the SLV-F series enclosure centre inside it. Depending on their size, the cabinets come equipped with either one or two doors. The doors have hinges, three-point locking, and a hold-open hook for locking the door open during operation.

DIMENSIONS

Width 400 600 850 1050 1350 1600 1900
Height 1120 1405 1685 1965
Depth 360
Base 300 700

ELECTRIC FEATURES

Nominal voltage

Un

Insulation voltage

Ui

Nominal current Rated Short Time Withstand Current

Icw

Peak Value Of Withstand Current

Ipk

Nominal frequencyf Arc short-circuit
strength
- - - - - 50 – 60Hz -

MECHANIC FEATURES

Enclosure class Impact strength
(outer/inner)
Type of
subdivision
Material strength of
doors
< IP34D IK10 - 2,5mm

MATERIALS

Frame Insulating
flanges
Protective
screens
AlMg3 - -



FINISH STANDARDS
Available on order

EN 60529          EN 62262

IEC/EN 61439-5 IEC/EN 62208



Type Size Download Link
SLV-C Series Outdoor Panels PDF 1 MB Download
×
