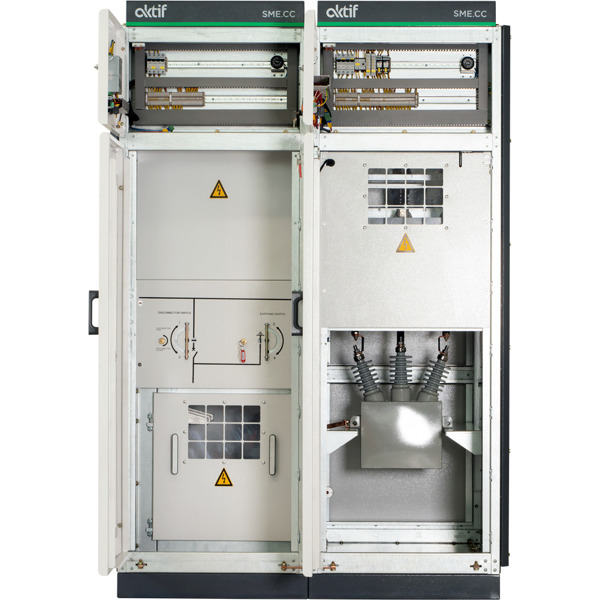

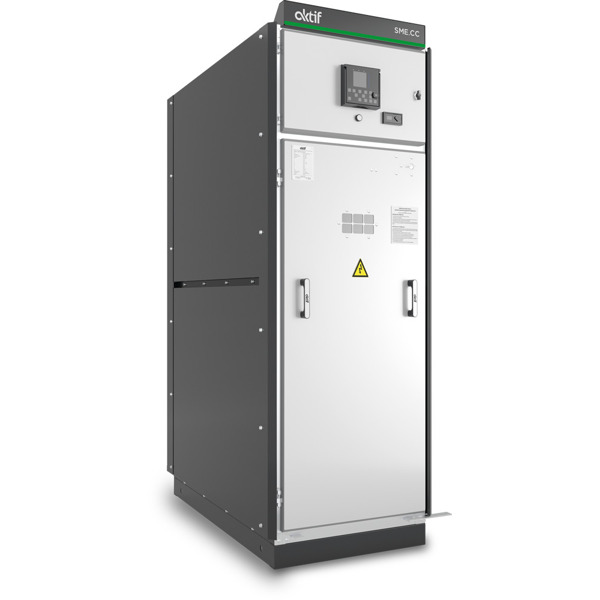

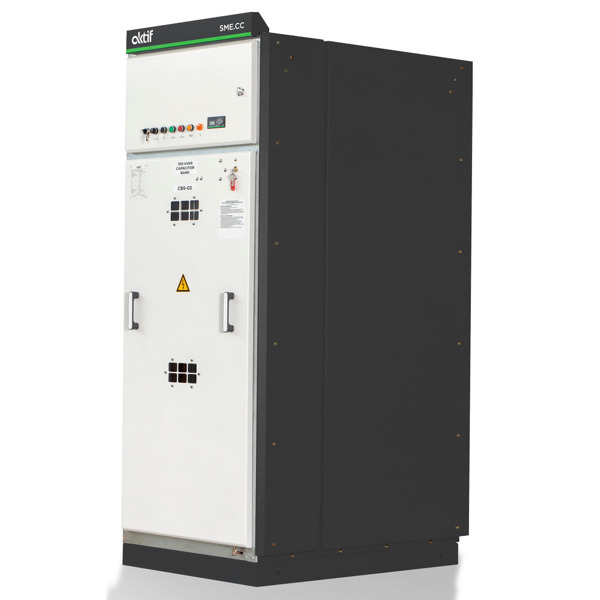

SME CC series is designed to improve power quality from 3 kV to 40.5 kV, from 100 kVAr to 5 MVAr with type-tested SME series Metal Enclosed infrastructure in accordance with IEC 62271-200 standard.
Step Option: Automatic / Manual / Fixed
System Design: Unfiltered / Current Limiting / De-Tuned Filter / Tuned filter
Step Switching:
< 12 kV with vacuum contactor / circuit breaker
> 12 kV with circuit breaker
Safety:
- Electrical and mechanical interlocking
- Construction with internal arc and seismic resistance type tests
- Special hinged door system
Application Areas
• Electricity production facilities
• Electricity transmission and distribution facilities
• Iron and steel factories
• Organized industrial zones
• Cement factories
• Mining facilities
• Paper factories
• Chemical facilities
• Renewable energy plants
• Water treatment and pumping stations
SME CC Metal Enclosed Capacitor Banks | Advantages
The main advantages of SME CC Series Capacitor Banks are listed below:
- Modular, compact and power increase compatible design.
- Easy design for transportation, storage and installation.
- End-user-focused design and test processes.
- High quality and low maintenance cost design.
- High safety for operator and facility that does not allow wrong manoeuvres.
- Ready to start-up design after energy input connections are made.
- Maximum power application in minimum floor space thanks to switching, protection and capacitor bank functions in the same structure.
- Type tests in accordance with IEC 62271 standards as well as Seismic tests in accordance with IEC 62271-210, EN 60068, IEEE 693 and GR-63-Core-Zone4 standards.
- Proven design that has not changed since 2002
SME CC Metal Enclosed Capacitor Banks | Technical Specifications
Technical specifications of SME CC Series Capacitor Banks are listed below:
- Voltage : 3.6, 7.2, 12, 15, 17.5, 24, 36, 40.5 kV
- Frequency : 50 / 60 Hz
- Step Power : 100 - 5000 kVAr
- Switching : Vacuum Contactor / Breaker
- Filter Type : Unfiltered / Current Limiting / Low Tuned Filter / Tuned Filter
- Protection Class : Up to IP42
Standards
- IEC 60871-1,4
- IEC 60076-6
- IEC 62271-200
- IEC 62271-210, EN 60068, IEEE 693, GR-63-Core-Zone4
