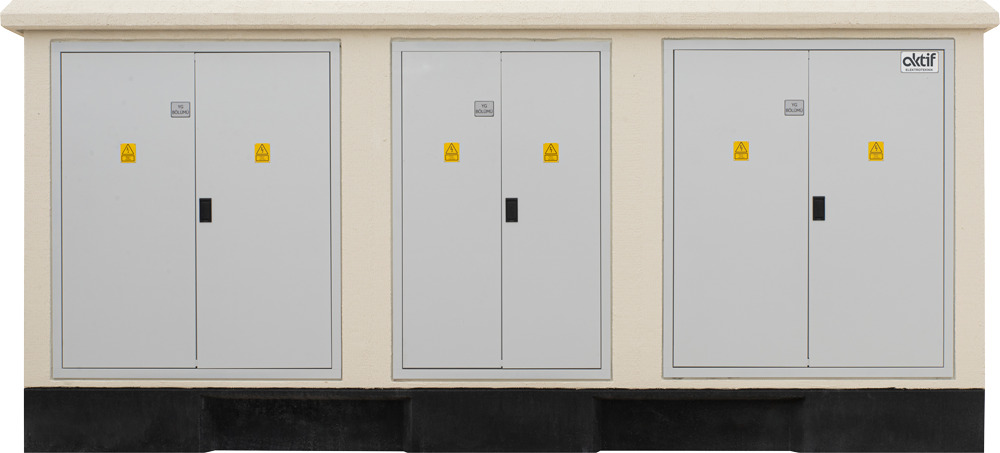

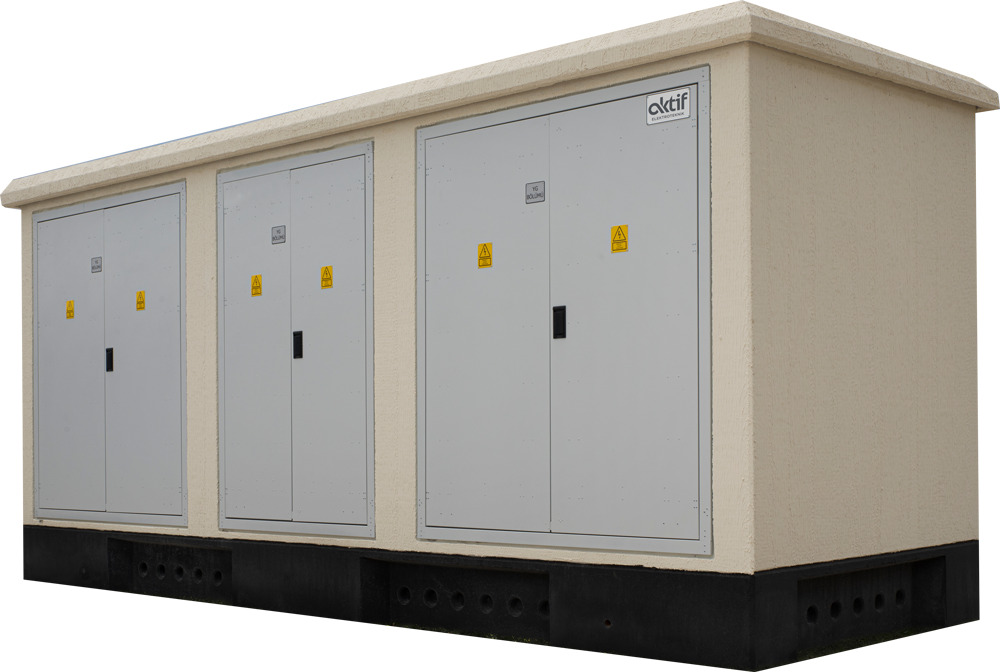

Monoblock Concrete Kiosk refers to SMK transformer and distribution substations manufactured for transformer capacities up to 1600 kVA.
The SMK Monoblock Concrete Kiosk is produced in compliance with type tests conducted by internationally accredited laboratories, the IEC 62271-202 standard, and the TEDAŞ-MLZ/2020-069 regulation.
The SMK monoblock concrete kiosk series is certified with TSE, ISO 9001, ISO 14001, and ISO 45001 quality standards.
SMK Monoblock Package Substation are manufactured for outdoor applications like substations electricity distribution, factories, hospitals, power generation plants, renewable power plants and port management solutions. Also SMK monoblock concrete kiosks can be used with air insulated SME series modular switchgears and with gas insulated switchgears. In addition, SMK gives opportunity for special usages like for low voltage AC-DC panels, protection and control panels, generator and compensation systems, control and signaling centers, engine feeding panels.

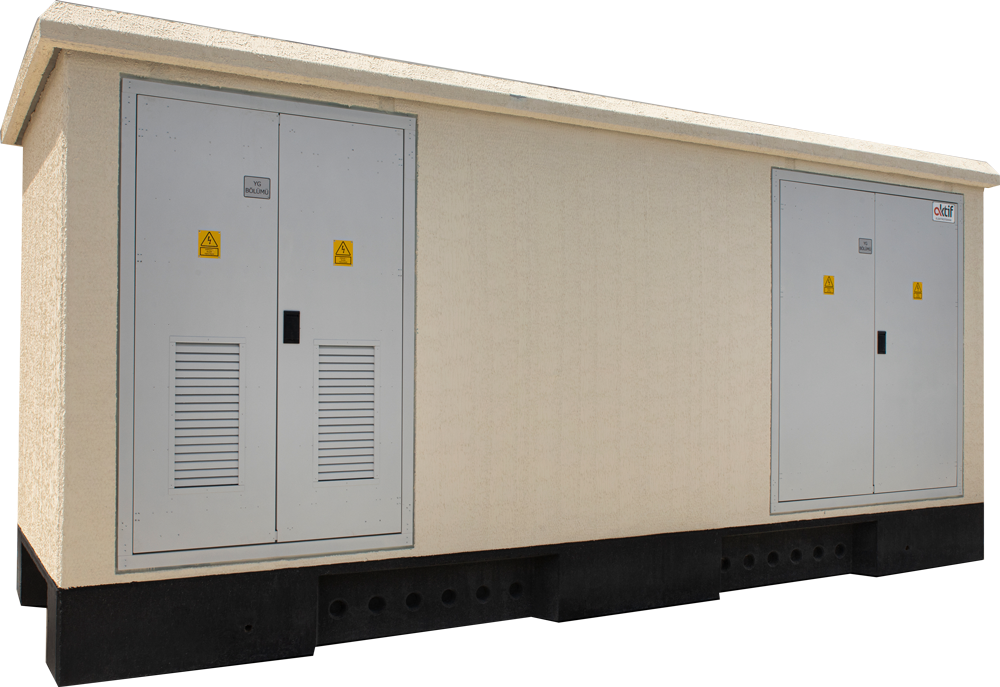

SMK E-House / Monoblock Package Substation consists of two parts including main frame and roof. It is placed on the kiosk ground specially prepared in the site. According to TS 500, compressive strength class of concrete is C35. SMK is compatible for nature. Protection class is IP23D against the water and the dust. Aktif SMK monoblock concrete compact substations can be equipped with fan and air-conditioner as well as natural ventilation according to request. Exterior walls of kiosk are painted with a grainy exterior paint in RAL 9001 and doors are painted with RAL 7035 as standard . It is possible to use different color options according to the project requirements.
SMK E-House / Monoblock Package Substation are manufactured in compliance with type tests received international accredited laboratories, IEC 62271-202 standards and TEDAŞ-MLZ/2020-069 regulation. SMK E-House / Monoblock Package Substation have TSE, ISO 9001, ISO 14001 and ISO 45001 quality certificates.
Advantages
- Conformable design for every types of medium voltage switchgear
- Conformable design for every types of low voltage panel
- Special design suitable according to needs for doors and ventilation systems.
- Special applications for special projects
- Long operating life and high strength with C35 concrete
- Easy and reliable transport and commissioning
- IP23D protection class
- Compact design
- Easy and safe operation
- Long working life
Application Areas
- Power Distribution and Transmission
- Compensation Facilities
- Renewable Power
- Cement Plants
- Automotive Industry
- Iron and Steel Industry
- Rolling Mills
- Mining Plants
The main advantages:
- Modular design
- Operation in safety
- Easy transport and commisioning
- Long service life
- High strength due to C35 concrete
- Internal arc classification in compliance with IAC A and B
- IP23D protection class
- Safety and tested earthing circuits
- Different product solutions to special projects
- Suitable design for each type LV and MV panels.
Design Criteria
- Altitude: 1000 m
- Ambient temperature: -5 to +50 °C
- Pollution level: Class 3
- Maximum solar radiation: 1000 W/m²
- Earthquake resistance: 0.5 g (horizontal and vertical)
Rated Values
- Rated voltage (Ur): up to 40.5 kV
- Rated current (Ir): up to 3150 A
- Short-circuit current (Ik): up to 40 kA
- Frequency (Fr): 50/60 Hz
- Internal Arc Classification (IAC): A and B
- Protection degree (IP): IP23D
- Climatic class (Cl): 10
- Concrete compressive strength class: C35
Standards
- IEC 62271-202
- IEC 62271-200
- IEC 60529
- IEC 60068-2-11
- IEC 60076-1
- IEC 61442
- IEC 61439-1
| kisok Type | Width(mm) | Depth(mm) | Height(mm) | |||
| External | Internal | External | Internal | External | Internal | |
| SMK 2.55 | 2550 | 2350 | 2300 | 2100 | 2950 | 2750 |
| SMK 5.85 | 5850 | 5650 | 2300 | 2100 | 2950 | 2750 |
| SMK 7.5 | 7500 | 7300 | 2300 | 2100 | 2950 | 2750 |
| Type | Size | Download Link | |
| SMK-SPK Kiosks for Transformer and Power Distribution | 1 MB | Download |
How to design SMK series monoblock concrete kiosks?
Dimensioning and design of SMK series monoblock concrete kiosks is made in accordance with TEDAŞ-MLZ/2000-036.C regulation according to MV cubicle, transformer and LV panel dimensions up to 1600 kVA. It is also possible to use such as generator, motor or compensation panels, motor starter panels and the other all types LV panels inside monoblock concrete kiosks. Monoblock concrete kiosks can be designed in different combinations to use the following equipment. • MV Switchgear • MV Switchgear+ Transformer • MV Switchgear + Transformer + LV Panel • Transformer • Transformer + LV Panel • MV Switchgear+ LV Panel.
