Isolated power panels are used for the electrical supply of Group 2 rooms in medical areas.

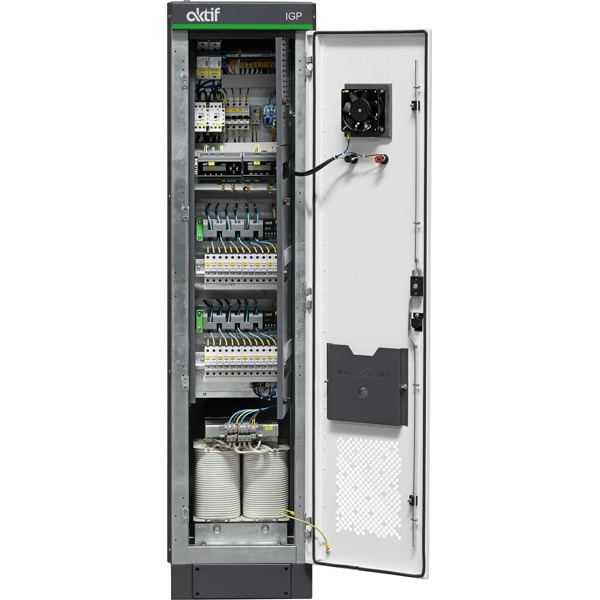

Aktif IG Series isolated power panels are used in group 2 rooms in medical locations, and they consist of auxiliary devices and test combinations such as an isolated transformer, an insulation monitoring device and insulation fault location devices.
Advantages
- Communication capability via Modbus RTU protocol
- Rated power ranging from 3.15 to 10 kVA
- Standard compact design for up to 24 lines
- High-speed switching between power sources
- Flexibility for custom production based on project needs
Application Areas
- Medical areas with Group 2 rooms, such as
- Hospitals
- Health Centers
- Dental Clinics
- Aesthetic Centers
- Veterinary Hospitals
Technical Specifications
- Operating rooms
- Power of system 3.15/4/5/6.3/8/10 kVA
- Rated voltage 230 VAC
- Monitoring insulation resistance, load
Current and temperature of the transformer - Colour of panel Door RAL 9003
- Side covers RAL 7015
Standarts
- IEC 60364-7-710:
- IEC 61558-2-15 S:
- IEC 61557-8:
- IEC 61557-9:
- IEC 60947-5-1:
| IGP | IGT | IGD | IGH | |
| Power Supply - Main - Safety |
OK - |
OK OK |
OK - |
OK OK |
| Insulation Monitoring Device | OK | OK | OK | OK |
| Changeover Module | - | OK | - | OK |
| Insulation Fault Location Device | - | - | OK | OK |
| Alarm Outputs - Insulation Fault - Over Load - Over Temperature - Switchover Failure - Insulation Fault Location |
OK OK OK - - |
OK OK OK OK - |
OK OK OK - OK |
OK OK OK OK OK |
| Rated Power | 3.15 / 4 / 5 / 6.3 / 8 / 10 kVA | 3.15 / 4 / 5 / 6.3 / 8 / 10 kVA | 3.15 / 4 / 5 / 6.3 / 8 / 10 kVA | 3.15 / 4 / 5 / 6.3 / 8 / 10 kVA |
| Rated Voltage - Main - Safety |
230 Vac - |
230 Vac 230 Vac |
230 Vac - |
230 Vac 230 Vac |
| Rated Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Rated Insulation Level | 3 kV / 1 min | 3 kV / 1 min | 3 kV / 1 min | 3 kV / 1 min |
| Leakage Current to Enclosure | < 0.5 mA | < 0.5 mA | < 0.5 mA | < 0.5 mA |
| Response Range | 50 … 750 kΩ | 50 … 750 kΩ | 50 … 750 kΩ | 50 … 750 kΩ |
| Fault Detection Responce Time | < 2 s | < 2 s | < 2 s | < 2 s |
| Switchover Time | - | < 200 ms | - | < 200 ms |
| Operating Temperature | -5 … 50 °C | -5 … 50 °C | -5 … 50 °C | -5 … 50 °C |
| Storage Temperature | -25 … 60 °C | -25 … 60 °C | -25 … 60 °C | -25 … 60 °C |
| Cooling System | Natural | Natural | Natural | Natural |
| Protection Class | IP 31 | IP 31 | IP 31 | IP 31 |
| Distribution Outgoings | 6 … 24 | 6 … 24 | 6 … 24 | 6 … 24 |
| Color - Door - Side cover |
RAL 9003 RAL 7015 |
RAL 9003 RAL 7015 |
RAL 9003 RAL 7015 |
RAL 9003 RAL 7015 |
| Standards | IEC 60364-7-710 | IEC 60364-7-710 | IEC 60364-7-710 | IEC 60364-7-710 |
| Type | Size | Download Link | |
| IG - Medical Isolated Power Panels | 1 MB | Download |
What are Isolated Power Panels?
Isolated power panels prevent personnel and patients from being harmed by electricity. Power outages that may occur due to insulation failure are prevented by using isolated power panels.
What Equipment Do Isolated Power Panels Consist Of?
Isolated power panels are used in Group 2 rooms in medical areas and consist of isolated power panels and auxiliary devices such as isolation transformers, isolation monitoring devices, alarm indicator panels, and test combinations.
Where Are Isolated Power Panels Used?
They are mandatory in Group 2 rooms such as operating rooms, operating preparation rooms, plaster rooms, recovery rooms, intensive care units, anaesthesia rooms, cardiac catheterisation rooms, angiographic examination rooms, and premature baby rooms.
What are the advantages of Isolated Power Panels (IT Panels)?
- They prevent personnel and patients from being affected by electrical energy.
- They prevent power outages caused by insulation faults.
- They reduce fault currents in the electrical system to non-critical levels.
- They ensure the continuity of power supply for medical areas.
- They guarantee electrical fault monitoring.
- The risk of fire caused by leakage currents is eliminated with the IGTP series of medical power systems.
- High-cost medical devices are protected against electrical faults.
- Additional leakage currents are collected to prevent them from reaching critical levels.
- Interruptions to operations are prevented.
